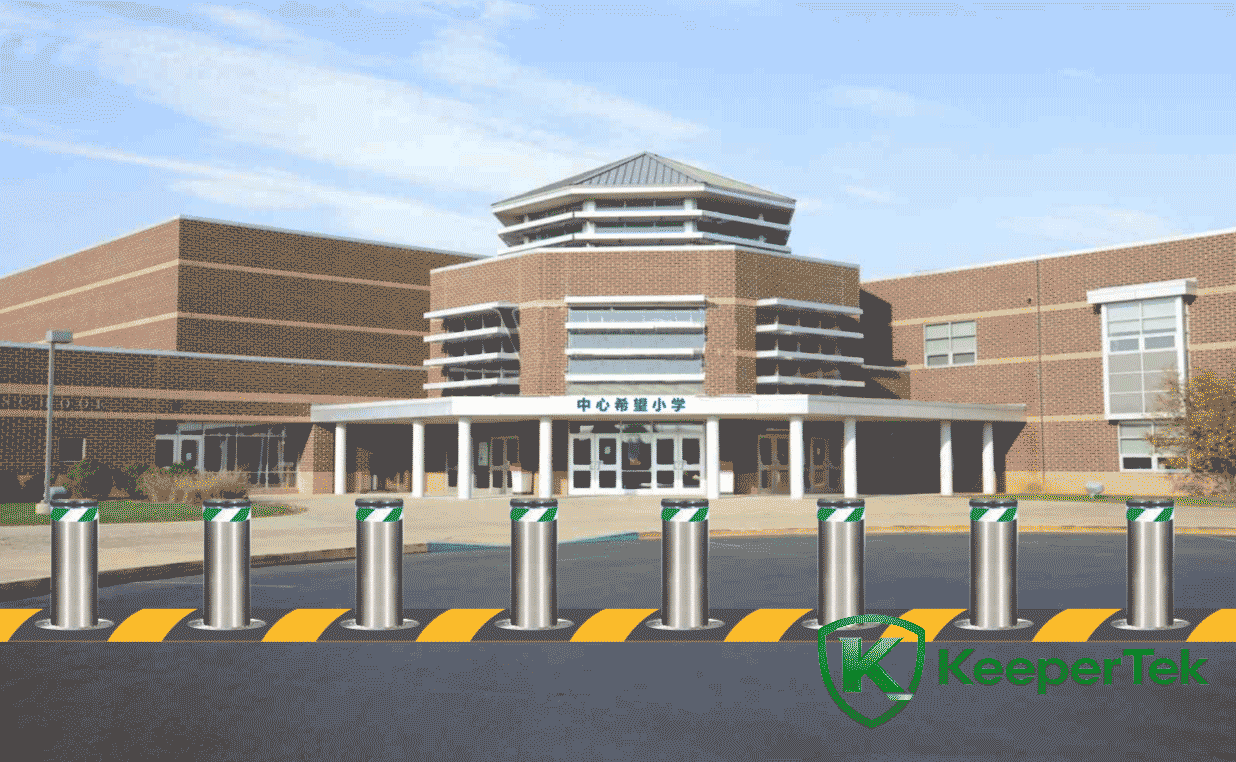

Ikholamu yokuphakamisa udushe

24V Umbane ophantsi wekholamu yokuphakamisa umbane KT-DX08

Iiparamitha zobugcisa

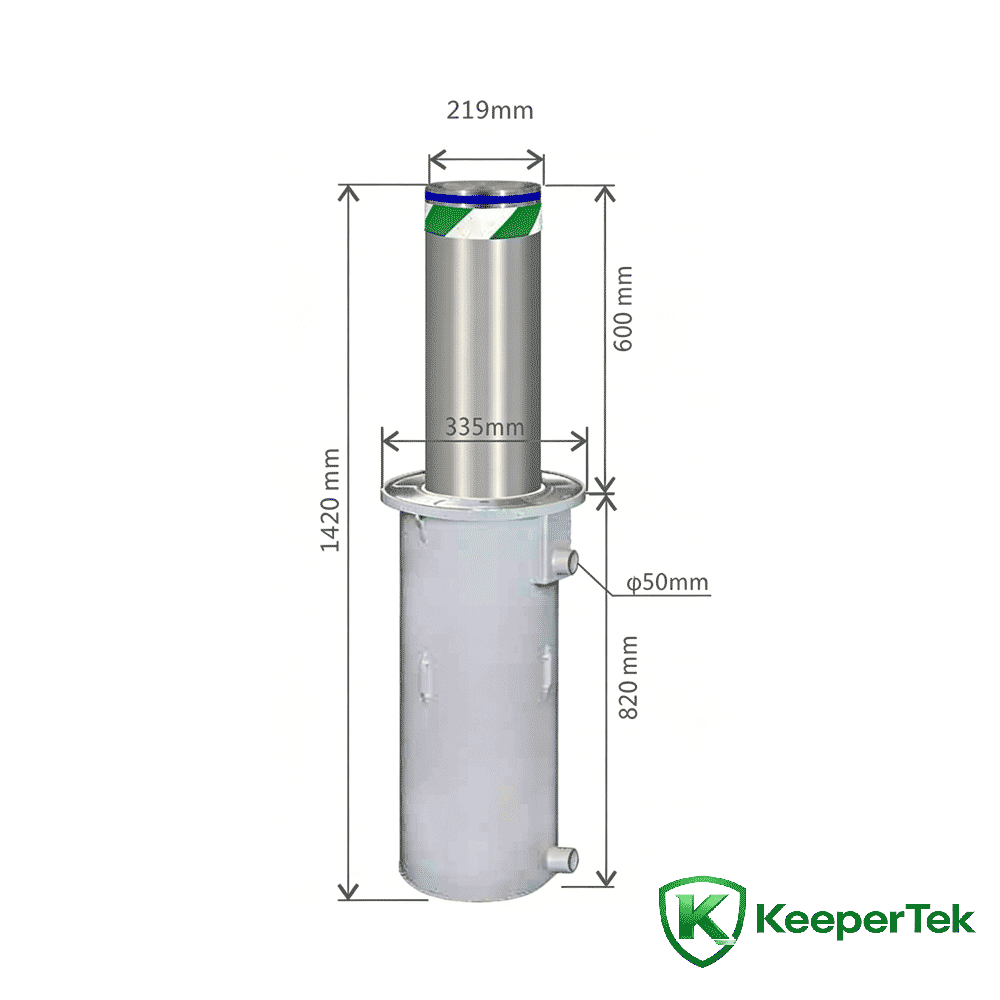

Idayamitha yesilinda: 219mm

Ubude besilinda: 600mm

Ubukhulu besilinda: 6mm

Izinto ze-cylinder: 304 insimbi engenasici

Isantya sokunyusa: 6S～13S

Iimpawu ezifakwe kwibhakethi: ububanzi 395mm x ubunzulu 820mm

Ibakala lokungangeni manzi: IP68

Ubushushu bokusebenza: -35℃～75℃

Iimpawu zeFlange: 395mm × 10mm

Umbane wokubonelela: 24V

Amandla: 200W

Iimpawu ezilumkisayo: ifilimu ebonisa ukukhanya okuphakamileyo okuphezulu, izibane ze-LED

Umsebenzi ongxamisekileyo: Ixhotyiswe nge-EPS umbane ongxamisekileyo kunye nokwehla kweqhosha elinye

Imo yokulawula: Ibhokisi yokulawula ingasetyenziselwa ulawulo lwe-one-to-one / ulawulo lwesikhululo esinentambo / ulawulo olukude olungenacingo

Imisebenzi eyandisiweyo: ukuqaphela ipleyiti yelayisenisi/i-alam yomlilo/unxibelelwano lwenkqubo yolawulo lofikelelo

Iimbonakalo

I-DC 24V yombane ecocekileyo, umbane okhuselekileyo;

I-wiring elula, umgca wokulawula omnye kuphela ofunekayo kwibhokisi yokulawula kunye neseti yeentsika zokuphakamisa, ukugcina iindleko zecingo.；

Inokudityaniswa kwi-24VUPS unikezelo lwamandla ukulawula ukunyuswa kwayo；

Ibakala elingangenwa ngamanzi i-IP68, isenokusetyenziswa ngokwesiqhelo nasemva kokuba ifakwe emanzini:

Isakhiwo esomeleleyo kunye nesigxina, umthamo omkhulu womthwalo；

Ukusebenzisa ifilimu ebonisa ububanzi be-5CM, ukubonakaliswa kunokufikelela ngaphezu kwe-90%;

Ukuzikhethela ukukhanya okuphezulu kokukhanya kwe-LED ibha yokukhanya iphucula ngokufanelekileyo isiphumo sesilumkiso sasebusuku.

I-flange yephaneli ithatha i-anti-slip pattern pattern, kunye nobukhulu be-flange buyi-10mm / 6mm;

Ubunzima beflange phezulu kwikholamu yi-10mm/6mm;

Non-standard customization yamkelwe. Ububanzi ngokubanzi, ubukhulu, ukuphakama, ukubonakala, isantya, njl.

Iinketho zoqwalaselo

Ukuphakama: ukuphakama 400mm, ukuphakama 800mm, ukuphakama 1000mm, ukuphakama 1200mm, ukuphakama 1500mm

Ubukhulu: 8mm ubukhulu, 10mm ubukhulu, 12mm ubukhulu, 16mm ubukhulu, 20mm ubukhulu

Ububanzi: 168mm ububanzi, 273mm ububanzi, 325mm ububanzi, abanye
